Frez 25mm Weldon długi 2 ostrza TiCN-8% HSS-Co Swisstech SWT1630355A
dostępny na zamówienie
Cena regularna:
Cena regularna:
towar niedostępny
dodaj do przechowalni
4.9
Opis

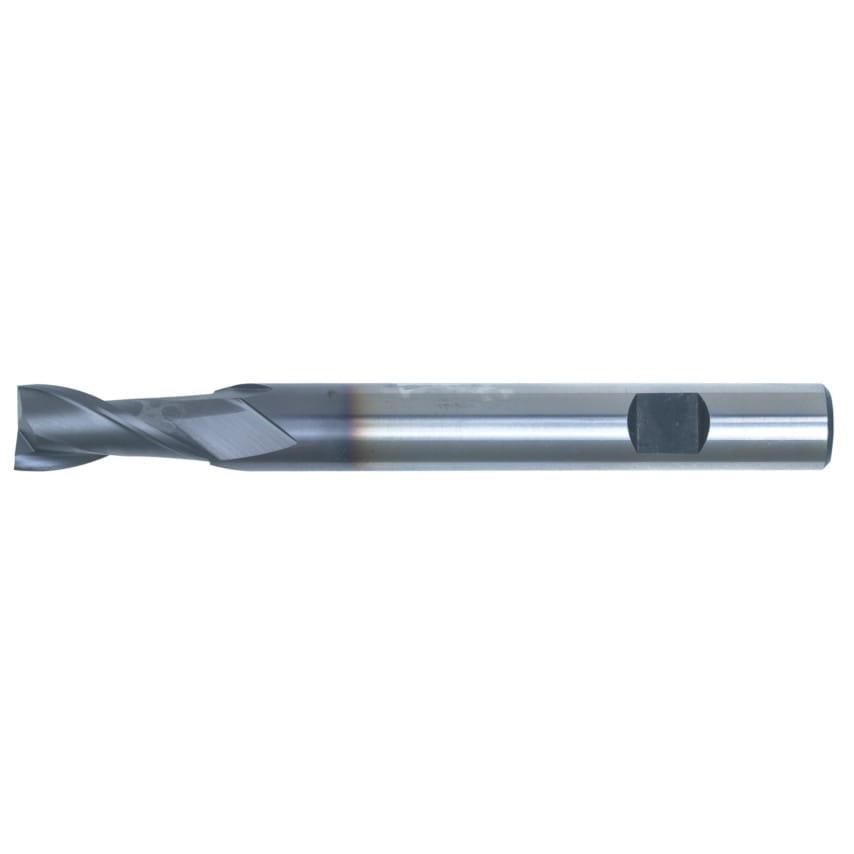

25.0 WELDON LONG 2FL SLOT DRILL-TICN-8% CO Swisstech SWT1630355A
SWT-163-0355A
Series 03 - Long Series, TiCN Coated Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6. Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
- Shank Type: Weldon Flat
- Numer produktu: E7510250
- Cutter Diameter: 25mm
- Materiał: Cobalt High Speed Steel
- Finish/Coating: TiCN
- Flute Type: Helical
- Number of Flutes: 2
- Cutter Diameter Tolerance: e8
- Flute Length: 45mm
- Średnica chwytu: 25mm
- Material Grade: M42
- Średnica chwytu Tolerance: h6
- Cutting Direction: Right Hand
- Standards Met: DIN 1835B, DIN 844
- Długość całkowita: 166mm
- Series: 03
- Plunge Type: Centre Cutting
