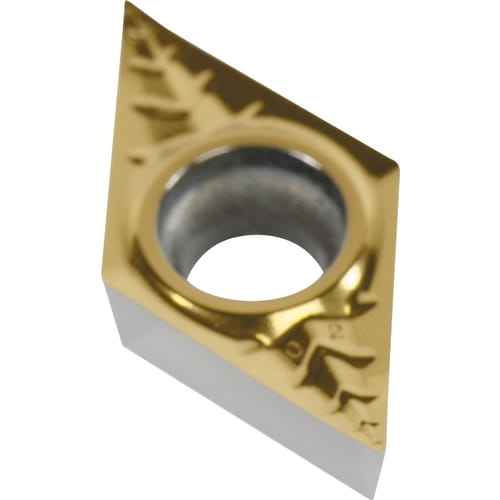

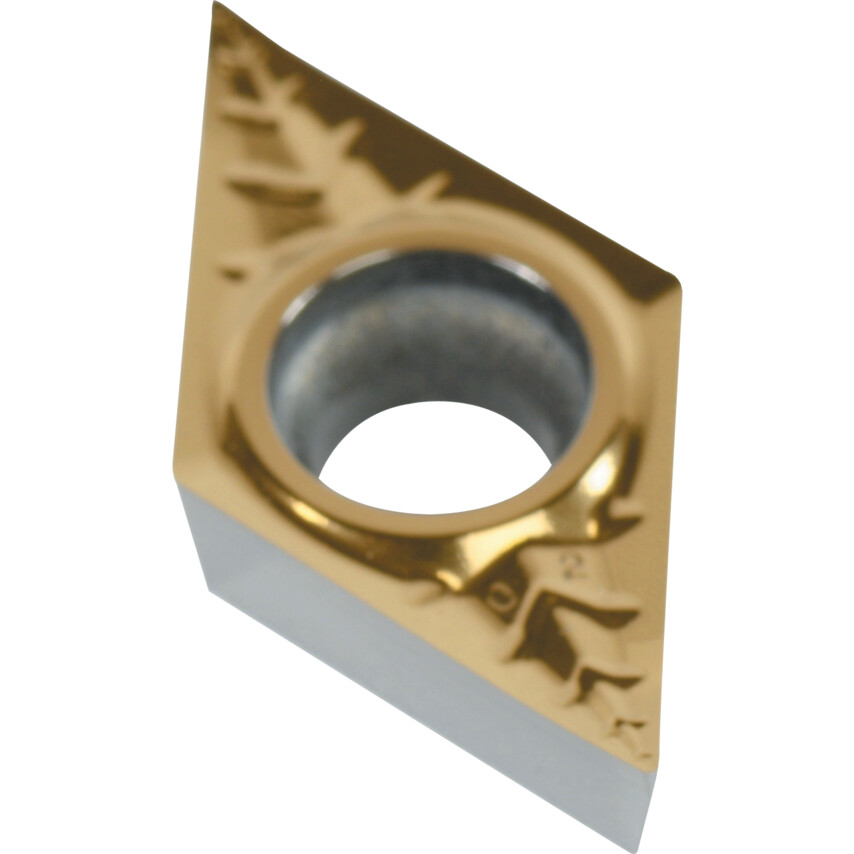

Płytka do obróbki wykończenia i półwykończenia aluminium i półaluminium DCGX 070204-ALC Yamaloy YML1201282N
dostępny na zamówienie
Cena regularna:
Cena regularna:
towar niedostępny
dodaj do przechowalni
Opis
Płytka do obróbki wykończenia i półwykończenia aluminium i półaluminium DCGX 070204-ALC Yamaloy YML1201282N
Yamaloy YML-120-1282N
YML1201282N
DCGX 070204-ALC INSERT GRADE K10C Yamaloy YML1201282N
Yamaloy YML-120-1282N
DCGX Turning Inserts
55° Rhombic Inert
Fits the same Internal/External Toolholders as DCGT
Insert Geometry for Finishing & Semi-finishing of Aluminium & Aluminium Alloys
Optimised edge and radius geometry.
Improved surface finish.
Improved chip control.
'G' Tolerance for high repeatability.
First choice for machining pure aluminium.
30% longer insert life compared to uncoated grade.
Insert Grade K10C
ISO N05-N15 PVD Coated. Micrograin carbide for machining aluminium and aluminium alloys, 30% higher tool life against uncoated grade. Smooth coating and polished surface gives better chip control.
ALC Geometry
For finishing & semi finishing of aluminium and aluminium alloys. A unique breaker design gives a sharp cutting edge and positive rake angle. Special edge preparation and surface treatment produce better surface quality and greater chip control, reduced friction and vibration. 'G' tolerance inserts for higher repeatability.
Manufacturer Grade: K10C
Inscribed Circle: 6.35mm
Insert Style: DCGX
Corner Radius: 0.4
Cutting Edge Length: 7.8mm
Thickness: 2.38mm
Cutting Direction: Neutral
Shape: 55° Rhombic
Material Application: Aluminium, Aluminium Alloys
ISO Cut: N05 to N15
Insert Size: 0702
Material: Carbide
Chipbreaker: ALC
ISO Designation: DCGX 070204-ALC
ISO Category Grade: N
Clearance Angle: 7°
