Płytka do obróbki wykończenia i półwykończenia aluminium i półaluminium TCGX 16T308-ALC Yamaloy YML1207096N

Płytka do obróbki wykończenia i półwykończenia aluminium i półaluminium TCGX 16T308-ALC Yamaloy YML1207096N

Yamaloy YML-120-7096N

YML1207096N

TCGX 16T308-ALC INSERT GRADE K10C Yamaloy YML1207096N

Yamaloy YML-120-7096N

SM.CK016,37,8ZLNE

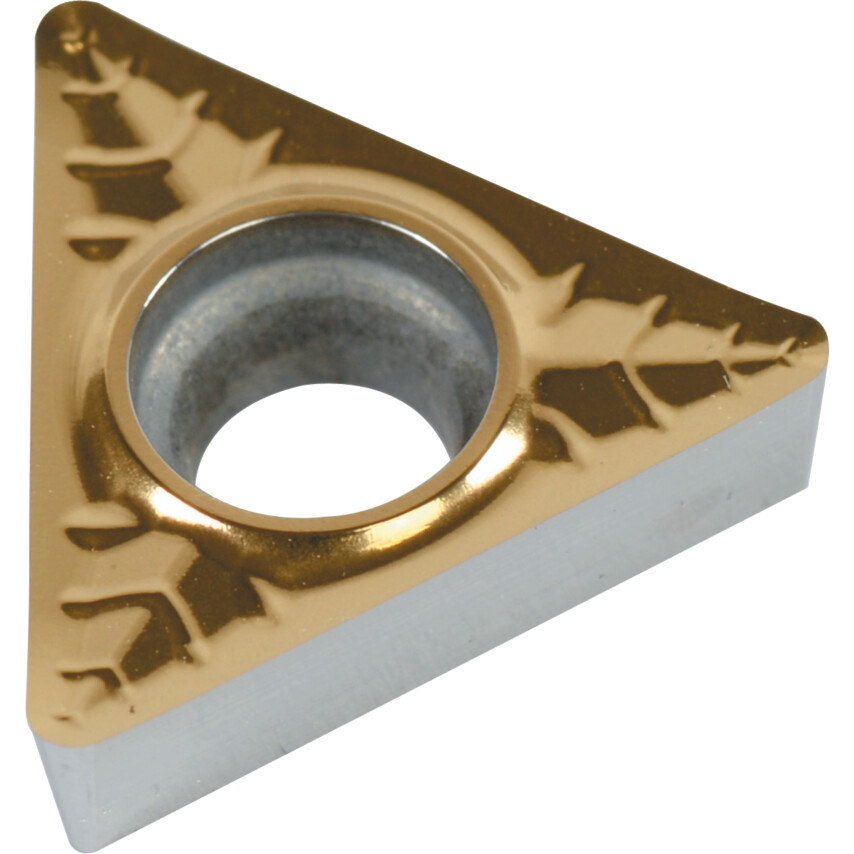

TCGX Turning Inserts

60° Triangular Insert

Fits the same Internal/External Toolholders as TCGT

Insert Geometry for Finishing & Semi-finishing of Aluminium & Aluminium Alloys
Optimised edge and radius geometry.
Improved surface finish.
Improved chip control.
'G' Tolerance for high repeatability.
First choice for machining pure aluminium.
30% longer insert life compared to uncoated grade.

Insert Grade K10C
ISO N05-N15 PVD Coated. Micrograin carbide for machining aluminium and aluminium alloys, 30% higher tool life against uncoated grade. Smooth coating and polished surface gives better chip control.

ALC Geometry
For finishing & semi finishing of aluminium and aluminium alloys. A unique breaker design gives a sharp cutting edge and positive rake angle. Special edge preparation and surface treatment produce better surface quality and greater chip control, reduced friction and vibration. 'G' tolerance inserts for higher repeatability.

• Manufacturer Grade: K10C
• Inscribed Circle: 9.525mm
• Insert Style: TCGX
• Corner Radius: 0.8
• Cutting Edge Length: 16.5mm
• Thickness: 3.97mm
• Cutting Direction: Neutral
• Shape: Triangle
• Finish/Coating: TiN
• Material Application: Aluminium, Aluminium Alloys
• ISO Cut: N05 to N15
• Insert Size: 16T3
• Material: Carbide
• Chipbreaker: ALC
• ISO Designation: TCGX 16T308-ALC
• ISO Category Grade: N
• Clearance Angle: 7°
